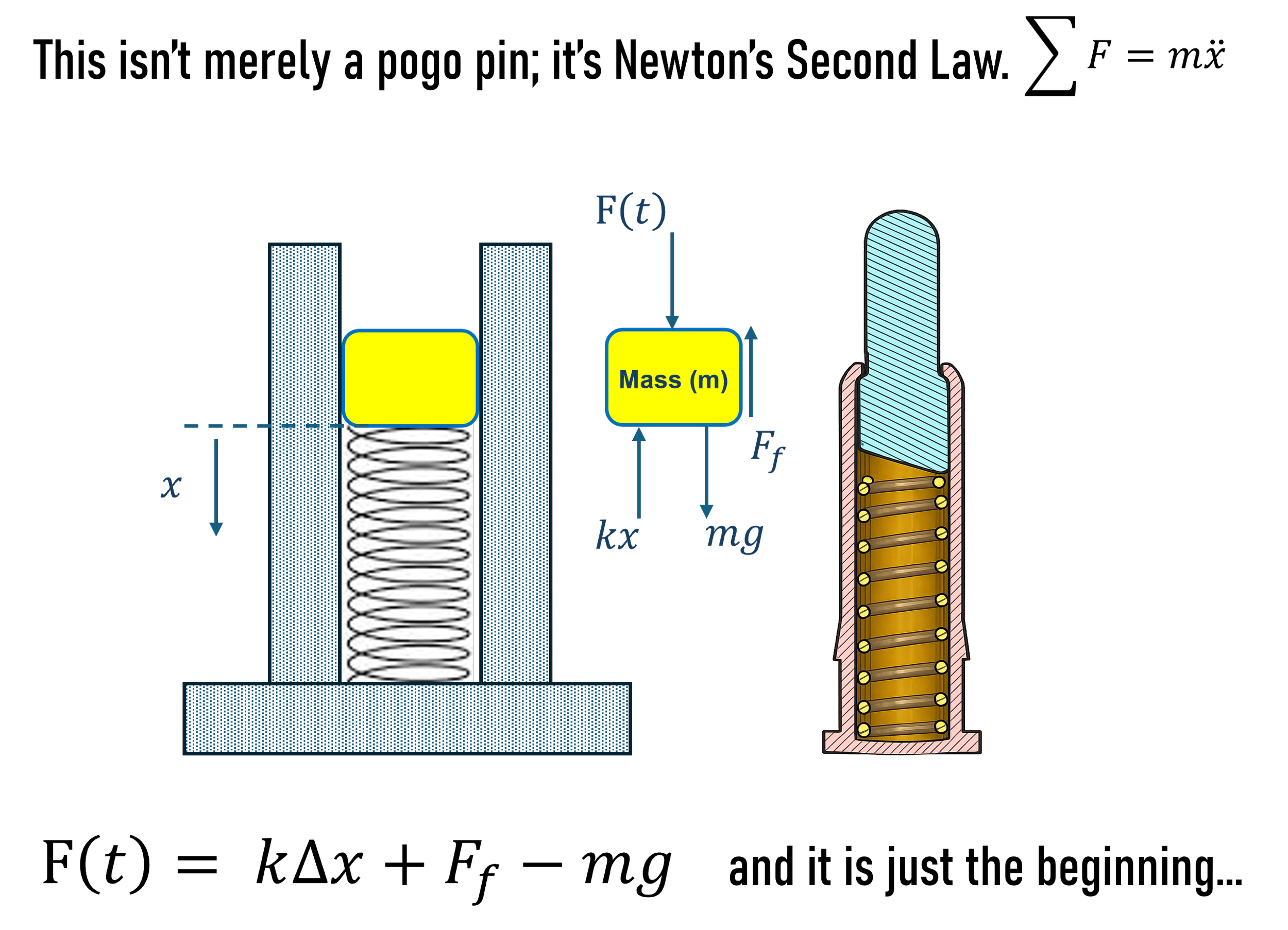

Diagram showing a spring-mass system with a labeled mass and spring constant, and a detailed cross-section of a mechanical device with coil springs and internal components.

Featured Spring-Loaded Pin

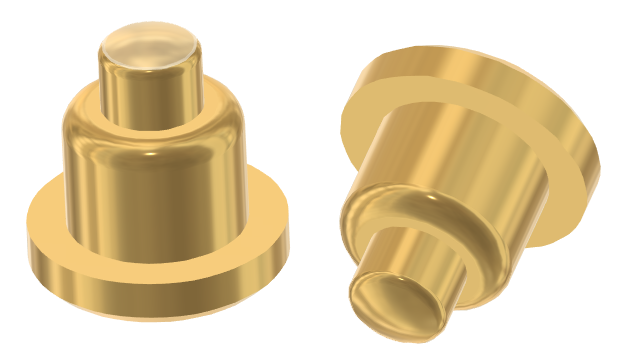

Low Profile Spring Loaded Pin
Two gold-colored pogo pin with a small protruding peen on top, viewed from different angles.

Low Profile

Free height : 1.0 mm
Stroke: 0.25 mm

Spring force: 25 gf

Current: 0.50A max

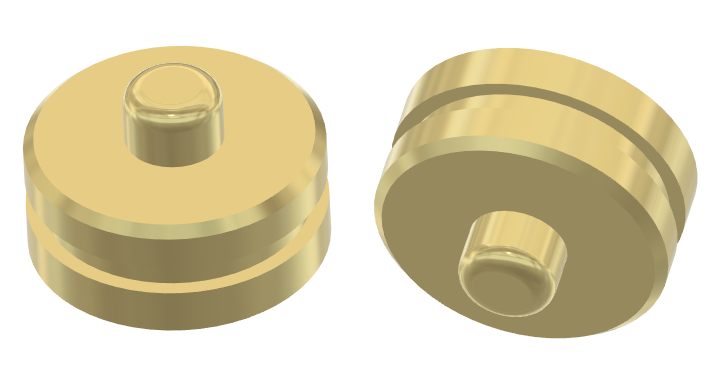

Low Profile Large Current

Free height : 2.0 mm
Stroke: 0.30 mm

Spring force: 0.5 Kg.f

Current: 20.0A max
